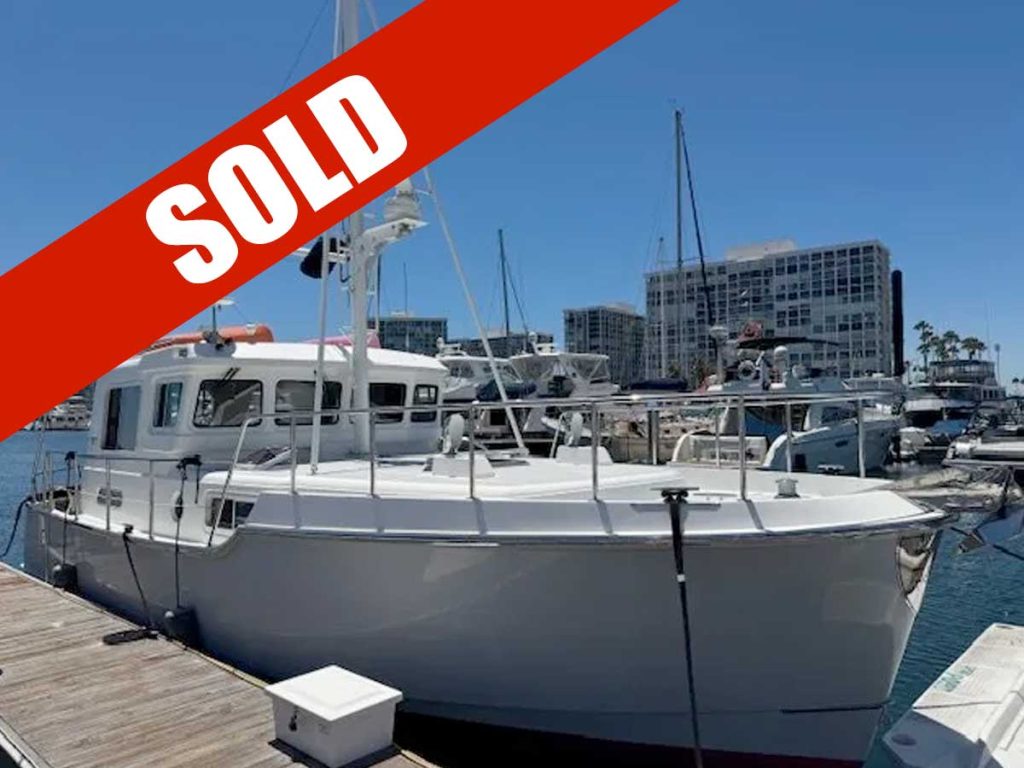

NORDHAVN 35
| NAME: | Nordhavn Eagle |
| LOA: | 35' 5" |
| AIR DRAFT: | 24' 0" |
| MODEL: | Nordhavn 35# 24 |
| LWL: | 33' 4" |
| MAST DOWN: | 12' 6" |
| TYPE: | Semi-displacement |
| BEAM: | 13' 2" |
| DRAFT: | 3' 9" |
| DISPLACEMENT:. | 23,000 lbs |
| BUILDER: | P.A.E./Ta Shing |
| YEAR: | 2004 |
| DESIGNER: | Jeff Leishman |
| HULL MATERIAL: | Fiberglass |
| COLOR: | Gray Hull with Dark Blue boot stripe and Red bottom paint |
| ENGINE: | Yanmar 6LY 370 HP |
| ENGINE HOURS: | 275 |
| TANKAGE: | (approx.) |
| FUEL: | 590 gal. |
| WATER: | 165 gal. |
| HOLDING: | 40 gal. |
| LOCATION: | Southern California |
| PRICE: | SOLD |

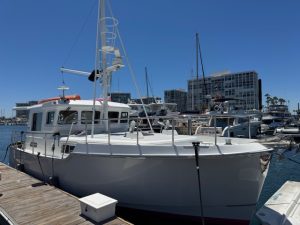

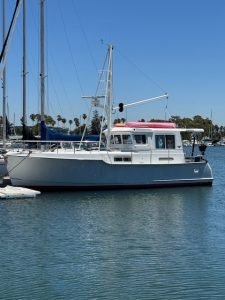

Overview
The Nordhavn 35 was designed and built primarily as a two-person yacht, with a convertible dinette for occasional overnight guests. Her looks are striking – this is a purpose-built boat with an unquestionable pedigree. At 35-feet she has the detail and attributes of much larger yachts.

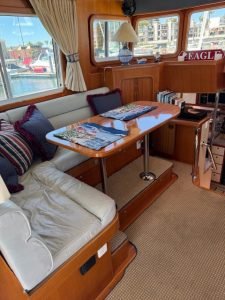

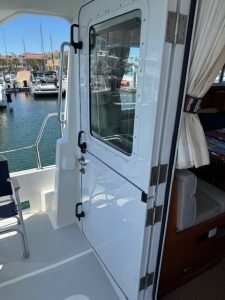

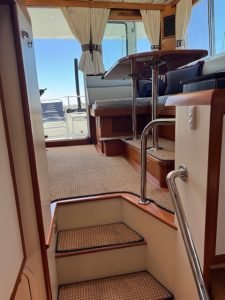

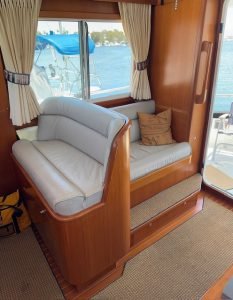

The pilothouse is aft with the trawler mast placed just forward of the windscreen. Enter from the cockpit through the commercial grade Diamond Sea/Glaze Dutch door into the salon/pilothouse. The first impression is of warmth and solid craftsmanship. “Nordhavn Eagle” has an L- shaped dinette with fixed teak table to port. There is a settee to starboard with helm bench seat and helm station forward.

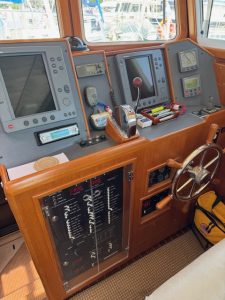

The helm station has an impressive console, well-proportioned for a logical and legible electronics display. The single lever engine control and bow thruster joystick is located right on the console to make running or maneuvering in close quarters a breeze.
A bookcase aft and to starboard in the pilothouse has a cover that hinges down to provide a stand-up chart table for laying out paper charts. The visibility from the pilothouse is exceptional.

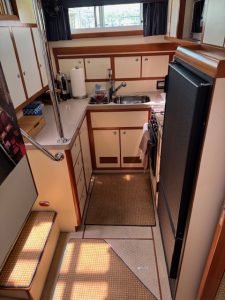

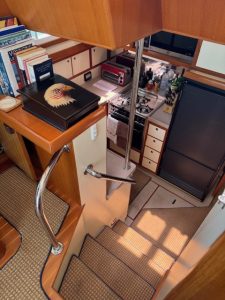

The U-shaped galley is just forward to port and down two steps from the pilothouse, making communication between the salon and galley easy. The galley is equipped with a Seaward Deluxe propane stove and oven, an upright refrigerator with freezer, a GE Carousel microwave, double stainless steel sinks with Corian countertops, and abundant storage lockers.

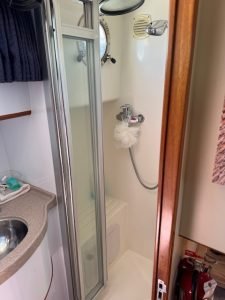

The head with its separate stall shower is to starboard opposite the galley. The head itself is a Jabsco “Quiet Flush”. The shower has a bi-fold door, seat, and single handle mixing valve.

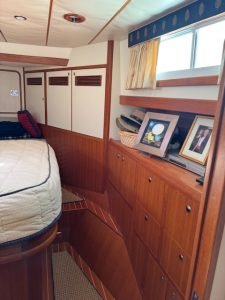

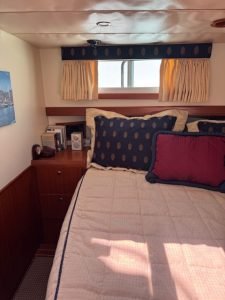

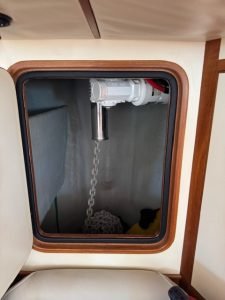

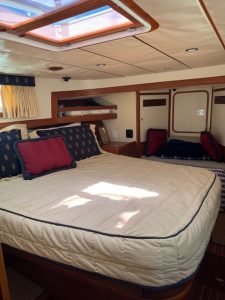

The owner’s stateroom is forward of the galley. It features an athwarthship queen bed with access on three sides, nightstands on both sides, lots of locker space, and a separate changing seat forward. Access to the chain locker is forward of the changing seat.
The interior is well-lit throughout. There are hatches, windows and dorade vents for abundant light and ventilation. The galley and owner’s stateroom are appointed with laminate bulkheads trimmed in teak. The amount of storage in lockers and drawers throughout is extensive.

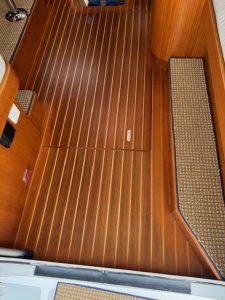

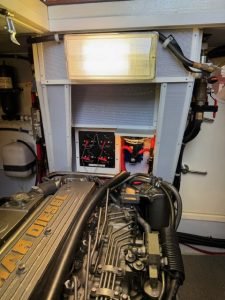

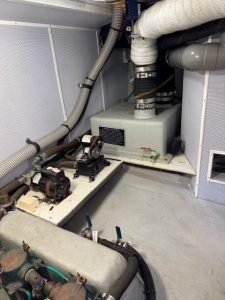

The engine room is located below the salon/pilothouse floor and is accessed through a sound-insulated door with viewing port. The salon sole has a large hatch, which lifts up for all machinery access.

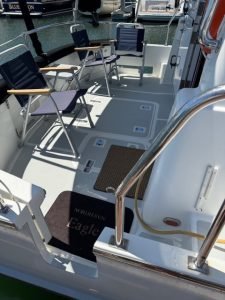

Outside and aft is a large cockpit fully covered by the boat deck for weather protection. There is a molded-in swim platform along with a drop-down hinged swim ladder.

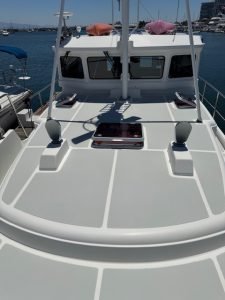

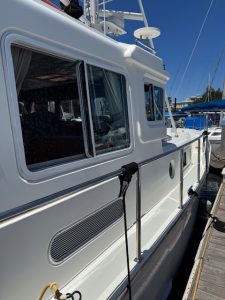

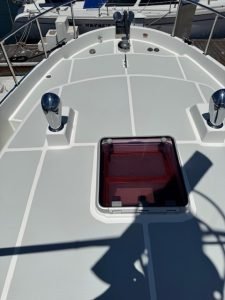

For access to the foredeck and boat deck, there are side decks outboard of the pilothouse with high stainless steel rails. The boat deck above the pilothouse is accessed via folding steps on the mast and is the perfect place for tender storage.

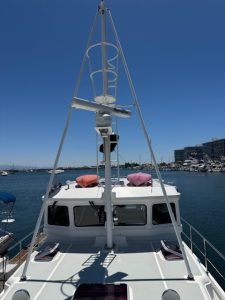

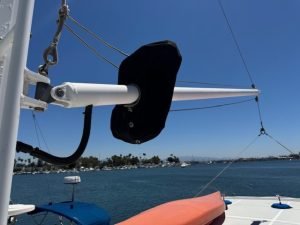

The trawler mast and boom are designed to serve as a dinghy davit. The mast is also equipped with a crow’s nest for 360-degree unobstructed viewing. The mast is hinged to tilt forward to reduce bridge clearance, or for overland shipment.
All of the stainless railing is 1.25″ diameter tubing, beautifully welded and polished. The only exterior woodwork is a teak cap rail above the transom.

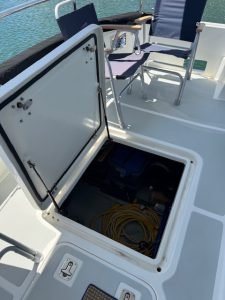

The cockpit is completely covered by the boat deck overhang. Two cockpit doors – one aft and one to starboard – provide access to the swim platform. There is a large hatch in the cockpit sole for easy access to the lazarette. Inside the lazarette there is access to the hydraulic steering and autopilot motor along with the hot water heater and house batteries.
Specifications
Listing Broker
Larry Gieselman
Sales Representative
- 949.300.3377
- 949.496.4848
- larry@nordhavn.com
- For more information, click here to contact your Nordhavn sales person or the office nearest you.
MACHINERY, ENGINE, FUEL SYSTEM AND ENGINE ROOM EQUIPMENT:

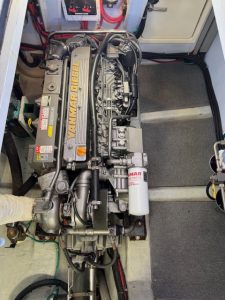

- Single Yanmar 6LYA- STE 370 HP diesel (275 hrs.)
- Hurth ZF transmission with a 2.85:1 reduction gear
- Shaft brush for bonding system
- 4-blade bronze propeller
- Aluminum gravity fed fuel supply reservoir
- Wet exhaust with silicon high temperature exhaust hose to muffler
- Dual Racor filters with gravity feed fuel system
- Hynautic hydraulic steering with bypass and separate emergency tiller
- 5-HP SidePower bow thruster – 12-volt

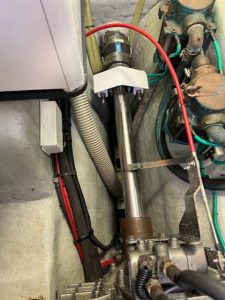

- Aquatech 22 stainless prop shaft
- Fuel tanks have sight glasses for level inspection
- Aluminum fuel tanks
- Custom prop shaft drip guard

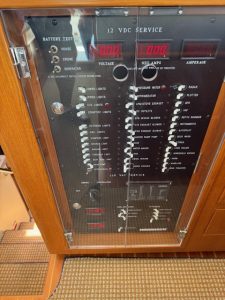

ELECTRICAL SYSTEM:

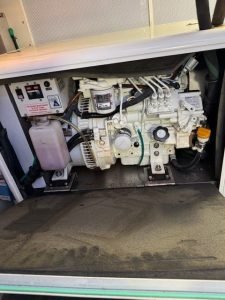

- 6 kW Northern Lights generator in sound enclosure and GenSep exhaust (245 hrs.)
- Heart 2500-watt inverter with integral battery charger
- Batteries:
2 ea. Lifeline 8D AGM batteries for house bank
1 ea. Lifeline 8D AGM battery for engine start
1 ea. Lifeline 4D AGM for generator start
- 30-amp shore power inlet
- Marinco 50′ 30-amp shore power cords
PLUMBING, GALLEY AND HEAD EQUIPMENT:
- Seward Deluxe three burner propane stove with oven
- New combination refrigerator and freezer
- Double stainless steel sinks
- GE Carousel microwave
- Jabsco Quiet Flush electric head
- Corian countertops
- 40 gallon holding tank with electric discharge pump
- 165 gallons of fresh water in two tanks
- Whale plumbing hose and fittings
- Electric and manual bilge pumps
- Seaward hot water heater in lazarette
- Single lever faucets at head and galley, single lever mixer in shower
- Foredeck raw water wash down
NAVIGATION AND ELECTRONICS:
- Raytheon auto-pilot
- Raytheon radar
- Raytheon chart plotter with GPS
- Danforth compass with “Nordhavn” logo card
- Raytheon wind direction / wind speed instrument
- Sony stereo / CD player

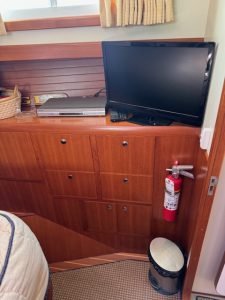

- TV in salon and owner’s cabin
- Raytheon VHF radio
- Marinco electric air horn
- Two electric windshield wipers on starboard windscreens
DECK & HULL EQUIPMENT:
- Two tone deck colors, white with grey molded-in nonskid
- LP painted Forespar mast and boom with forward tending struts. Includes hinge plate at mast base, radar bracket, side ladders and crow’s nest.
- Rule Electric reversing boom winches for dinghy launching

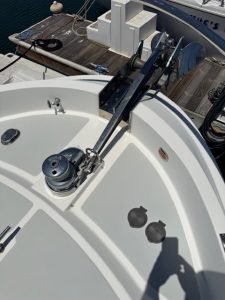

- Muir VRC 2500-A Atlantic electric reversing windlass (including manual override feature) with foredeck foot switches on foredeck and pilothouse remote control
- 60 lb. plow stainless steel anchor
- 400 feet of 5/16″ high test chain
- Magma propane BBQ
- Deck chairs
- Fenders and dock lines
- Fire extinguishers and life jackets
OTHER FEATURES:
- Teak and Spruce soles in pilothouse and owner’s stateroom
- Lonseal vinyl flooring in galley and head
- Loose laid carpeting on sole
- Engine room door has viewing port
- Hella turbo ventilation fans for interior
- Exterior courtesy lights
- Lewmar hatch in pilothouse
- All windows and hatches have screens
- Teak exterior aft rail cover
- Crow’s nest on mast
“Nordhavn Eagle represents a rare opportunity to purchase a low hour, nicely outfitted world class yacht from her original owner”.
Drawing
DISCLAIMER:
The company offers the detail for this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
