NORDHAVN 40 "SALTY LADY"

brokerage sold salty lady
Name:“Salty Lady”
Year:1999
Model:Nordhavn 40
LWL:35 ft 4 in
Draft:5 ft
Air Draft:26 ft 6 in
Displacement:50,000 lbs
Location:Jensen Beach, FL
Price:SOLD

Overview

An excerpt from Nordhavn.com:

“There are few boats so uniquely qualified to take two people and their guests around the world as comfortably and as economically as the Nordhavn 40. Strong, rugged and handsome in a no-nonsense way, her special personality was inspired by salty commercial ships fishing the world’s deepest oceans. She stirs a passionate interest and curiosity along docks and throughout anchorages everywhere, with people enthusiastically asking her crew “where have you been” and “where are you headed?” Indeed, the Nordhavn 40 looks like the serious passagemaker that she is. But above all her seriousness of purpose, there is a wonderfully romantic, emotional element to the boat that strongly attracts a wide base of seasoned sailors, experienced power boaters and those just entering the world of boating.”

The Nordhavn 40 is a well proven sea worthy vessel, and the paragraph above explains this very well. Nordhavn believes so much in this vessel that they sent their own project managers and other staff around the world on a Nordhavn 40 back in 2001. It was a 26,000-mile circumnavigation completed in six months. Many other Nordhavn 40s have made many noteworthy passages proving the seaworthiness of this little ship.

Entering the port side onto the cockpit you will find a spacious cockpit area with two benches which double as storage and an LPG locker. The deck is equipped with non-skid and there is access to the lazarette as well as to the swim step. The swim step was extended with a stainless steel structure and teak slats, which makes for a great platform. Forward through the watertight aft door you will now enter the salon. The salon on “Salty Lady” is full beam, and the starboard side has a an “L” shaped settee with a teak dinette table. The settee cushions, upholstery and foam have been completely replaced. The port side of the salon has two new reclining chairs and is a great place to relax, watch TV or read a book. The Splendide washer/dryer combo is neatly hidden away in the salon as well. Forward on the port side is a well-equipped galley. The galley appliances were all recently replaced with new units. There is a new gimbled Force 10 three burner LPG range which is great for cooking in adverse sea conditions. The new stainless steel Norcold fridge is a great upgrade as well as the new microwave.

Forward of the galley and salon area there are two staircases, one leading up the pilothouse and one leading down the cabins. Down the staircase one will be led to the guest cabin just off to the port side. The guest cabin consists of upper and lower bunks and ample storage. The lower bunk does slide out to become larger, which is a very nice feature. Opposite the guest cabin is the head area, which is a full head with a shower. It’s a nice use of space for a 40-foot vessel. Forward is the full beam owner’s cabin. This cabin has a large bunk for two people, ample storage and plenty of natural light from the overhead hatches and portlights. The floors throughout the vessel are carpeted with the wheelhouse having a teak and holly sole.

The pilothouse on the Nordhavn 40 has been well thought out. Starting aft there is a spacious day bunk. Going forward there is a nice settee area with a teak table. The cushions, like in the salon, have been reupholstered and the foam has all been replaced. The dash equipment is easily accessible. Much of the dash equipment has been replaced with new modern units which is another great upgrade to “Salty Lady”.

From the pilothouse we can access the remaining exterior spaces: Portuguese bridge, foredeck and the boat deck, through either the port or starboard watertight doors. The Portuguese bridge is a great protected area for an operator to observe his or her surroundings and still be protected from the elements. The foredeck has a non-skid surface as well as stainless steel and lifeline railings. Access to the windlass and anchor is from the foredeck. The anchor on “Salty Lady” was recently upgraded to a Rocna 40kg anchor.

Access to the boat deck is from both port and starboard sides. With the non-skid deck and stainless steel lifeline railing one does feel extremely safe up here. The paravane rigging has all been removed from “Salty Lady” so the boat deck is a nice and open space. A 2021 Achilles 11’6″ tender with a 20hp Yamaha outboard was recently installed. This is great tender for a Nordhavn 40 and is about as large as you can fit on the boat deck. The boom and winches can easily handle lifting and lowering this into the water from either the port or starboard sides. The galvanized winch cables were recently replaced with Spectra lines, which is yet another big improvement.

The engine room and lazarette areas on “Salty Lady” are easily accessed and well laid out. Access to the engine room is through a water tight door in the guest cabin. The machinery is simple and that is what you want on a long-range cruiser. The main engine is a Lugger 668D with 105hp and about 6,300 hours. These have always been extremely reliable engines. “Salty Lady” is also equipped with a Kilo Pak 12kw generator with only 1,850 hours. The fuel manifold system is simple to operate and the fuel capacity is 920 gallons. This fuel capacity will propel the vessel for 3,000 plus miles. The lazarette is accessed from the cockpit and holds the steering gear and several other electrical components.

Listing Broker

Listing Broker
garrett severen final team 3
Garrett Severen
Sales Representative/SE Sales Manager
Read Full Bio

Drawing

Specifications

Main Engine

  • Lugger 668D
  • Engine Power: 105 hp
  • Hours: 6,300

Genset

  • Kilo Pak 12KW
  • Hours: 1,700

Stabilizer System

  • Naiad active fins stabilizer (control panel in pilothouse)

Tanks

  • Fresh Water Tanks: (220 Gallons)
  • Fuel Tanks: Fiberglass (920 Gallons)
  • Holding Tanks: (68 Gallons)

Propeller

  • 3 blade propeller

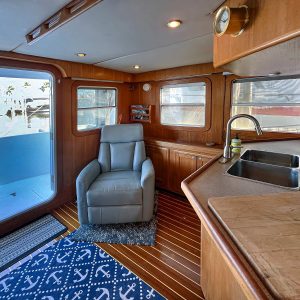

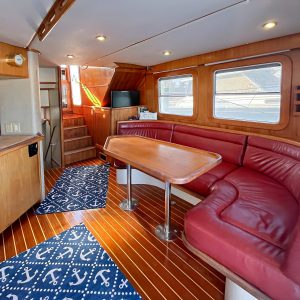

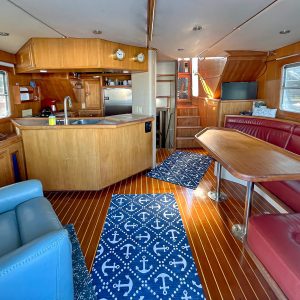

Salon
Salon built-in seating (new foam & upholstery in 2020) with storage underneath and a teak table to starboard, a Splendide 2000 combo washer/dryer in a cabinet starboard forward, two new lounge chairs, opening windows on each side and aft with shades and carpet. New teak and holly floors installed in 2023.

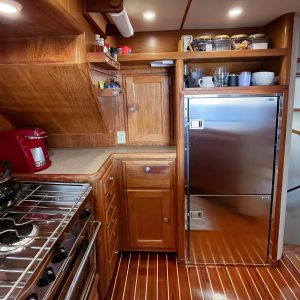

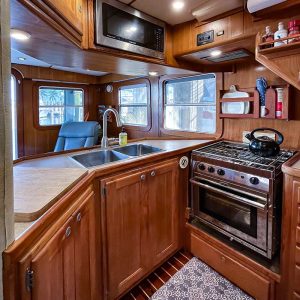

Galley

  • The galley is located port forward in the salon
  • Force 10 three-burner gas cooktop and oven (new 2019)
  • Isotherm refrigerator/freezer (new 2019)
  • Microwave oven (new 2020)
  • Double stainless steel sinks
  • Corian countertop
  • Storage drawers and cabinets and a spice rack
  • Teak & holly floor installed in 2023

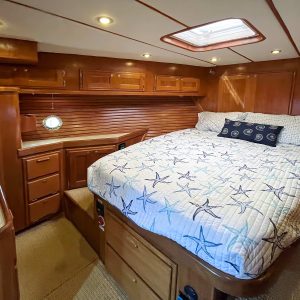

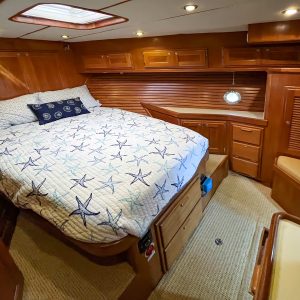

Owner’s Stateroom
The owner’s stateroom is located forward and offers an island queen size berth, nightstands, overhead hatch, two portlights, storage drawers and cabinets, hanging lockers, reading lights, carpet, a built-in seat and direct access to the head with enclosed shower to starboard.

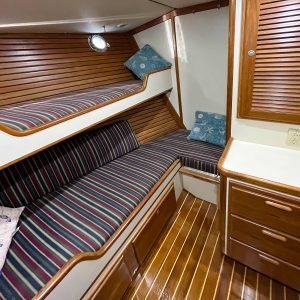

Guest Stateroom
The guest stateroom is located to port and offers over/under bunks (lower berth converts to a double size berth), reading lights, hanging locker, storage drawers, carpet and a door to the engine room. New teak and holly floors installed in 2023.

Head

  • Fresh water electric toilet (new 2019)
  • Sink
  • Stand-up shower
  • New floor installed in in 2023

Pilothouse
The pilothouse offers a helm forward with storage underneath, a bench seat, table and bed aft, split Diamond Seaglaze French doors, a folding chart table and an overhead hatch. New teak and holly floors installed in 2023.

Cockpit
The cockpit offers a non-skid deck, transom door, lazarette access, removable steps on the port side, a boarding gate on the starboard side, built-in seating with storage on each side, fresh water and a teak swim platform.

Electronics

  • NMEA 2000 network (Garmin)
  • Sirius marine weather
  • Garmin 7612 chart plotter
  • Vesper XB-8000 AIS
  • Simrad AP21 autopilot
  • Raymarine ST40 wind gauge
  • Furuno GP-36 DGPS
  • Airmar depth sounder
  • Garmin GMI20 display
  • Furuno 64nm radar
  • NAIAD Multi-Sea II
  • Ritchie Powerdamp magnetic compass
  • Standard Horizon GX2000 VHF
  • Weems & Plath ship’s clock in the pilothouse
  • Weems & Plath barometer and clock in the salon

Entertainment

  • Vizio flat screen TV
  • Stereo/DVD player/Bluetooth
  • Sirius satellite radio

Electric

  • Kilo Pak 12kW generator
  • Leece-Neville 140-amp alternator
  • Xantrex 3000-watt inverter w/remote panel
  • Three 8D AGM house batteries (2019)
  • Two 140w solar panels, Victron controller
  • One 4D main engine start battery
  • One Group 27 generator start battery
  • 12vdc outlets in the pilothouse
  • Two 50 foot 50-amp shore cable

Engine/Mechanical Equipment

  • Single Lugger 105hp main engine
  • Twin Disc MG5050 gearbox
  • Morse engine control
  • Fuel manifold
  • Dual Racor 75/900FGX fuel filters with vacuum gauge for the main engine
  • Racor 500FG fuel filter for the generator
  • Gulf Coast fuel polishing system
  • Fuel tanks 920 gal (two tanks at 460 gal each)
  • Reverso oil change system
  • Max Power bow thruster (rebuilt 2021)
  • Naiad 174 stabilizer system with Multi-Sea II controller (system installed in 2005)
  • Hynautic hydraulic steering system

Miscellaneous

  • Cruisair reverse cycle air conditioning/heating system with SMX II controls (qty 3)
  • Isotherm water heater
  • Fresh water electric head (2019)
  • Shaft line cutter
  • Maxwell 2200 anchor windlass with foot controls and helm controls
  • Rocna 40kg anchor with 350′ of 3/8″ anchor chain (2019)
  • Fortress FX-37 spare anchor
  • Double anchor rollers
  • Fresh water washdown for & aft
  • Stainless steel deck hardware
  • Stainless steel rails on the bow pulpit and aft and stainless steel stanchions with double lifelines on the foredeck
  • Sunscreens for all windows
  • Non-skid decks
  • Foredeck storage lockers
  • Dockbox on the boat deck
  • Portuguese bridge with gate to the foredeck
  • Two fresh air intake dorades
  • Steps to the boat deck both port & starboard
  • Spreader boat deck lights
  • Boat deck mast and boom davit system
  • ACR EPIRB
  • Radar reflector
  • Additional engine room fans
  • AFI horns
  • Fire extinguishers
  • Smoke detectors
  • CO2 detector
  • Newmar propane control in the galley
  • Manual Edson bilge pump
  • Rule bilge pump with high water alarm
  • Whale bilge pump (2020)
  • CruiseRO SM 20 GPH watermaker with remote panel and automatic fresh water flushing

Upgrades and Improvements from 2015 – Present

2015

  • Vesper AIS installed
  • LED anchor light
  • Bow thruster relays

2016

  • Main engine injector pump
  • Garmin GM120
  • Depth transducer
  • Standard Horizon VHF
  • NMEA 2000 network
  • Hoist lines replaced with Dyneema lines

2017

  • Phasor generator end – new
  • Main engine muffler replaced
  • NAIAD ECU controller

2018

  • Stabilizer seals
  • Engine room blower fans
  • New anchor, chain, and swivel
  • New RIB inflatable dinghy
  • New salon A/C
  • Watermaker
  • Autopilot pump
  • Main engine damper
  • Fuel polisher system
  • Mantus bridle with Mantus chain hook and Mantus mooring hook

2019

  • Boom crane winches
  • Galley stove
  • Sirius XM weather
  • Bow thruster motor
  • Electric toilet
  • Galley refrigerator
  • Raw water strainers
  • Upholstery
  • Window shades
  • Sunscreens
  • Water heater
  • Bilge pump

2020

  • Swim platform
  • Main engine water pump
  • Fresh water pump
  • Shower drain pump
  • NAIAD RAM
  • Crane control and motor
  • Keel cooler hoses
  • Solar panels
  • Solar panel controller
  • VHF antenna

2022

  • New AC raw water pump

2023

  • Replaced incandescent overhead lights in lazarette with LED lights
  • Replaced incandescent overhead lights in engine room with LED lights
  • Replaced incandescent overhead lights on aft deck with LED lights
  • Replaced 110-volt incandescent bulkhead light fixtures in engine room with 12-volt LED lights
  • Replaced incandescent overhead lights in wheelhouse with LED red/white fixtures
  • Replaced old LED lights in salon, guest cabin, hallway, head, and owner’s stateroom with new brighter LED lights
  • Removed, repaired, and reinstalled swim platform.  Added zinc anode to leg.
  • Installed swim ladder under swim platform
  • Tied swim platform to bonding system and added zinc anode
  • Installed new zinc anode on transom
  • Drained keel cooler
  • Removed keel cooler and cleaned all surfaces.  Installed new anodes.  Reinstalled keel cooler and replaced coolant.
  • Removed old blocks on boom and mast.  Replaced with new and upgraded system from single part to two-part.  Twice the safety.
  • Replaced 8 defective drawer latches
  • Replaced galley sink faucet
  • Removed, re-bedded, and reinstalled leaking seacock previously used to supply salt water to the head.  Plugged opening.
  • Installed macerator for holding tank and installed key switch for operation
  • Replaced all holding tank hoses under head sink
  • Installed new level sensor for black water tank
  • Installed water level sensor on freshwater tank
  • Installed tank level gauge for water tank (with switch) on bridge
  • Replaced defective breaker/disconnect switch for bow thruster
  • Corrected wiring and added on/off switch for aft engine room blower
  • Reprogrammed AIS to new vessel information
  • Added pressure/temperature alarm buzzer for main engine
  • Added pressure/temperature alarm buzzer for generator with key start switch
  • Added oil pressure and water temperature gauges for generator on bridge
  • Changed oil in main engine reduction gear
  • Changed oil and filter on generator
  • Installed foldaway ladder beneath engine room emergency escape hatch
  • Installed foldaway ladder beneath lazarette hatch
  • Installed new gas shocks for port and starboard storage compartments on deck forward
  • Removed and replaced the cutlass bearing
  • Fabricated new propeller shaft and installed to new cutlass bearing with new shaft coupling
  • Installed dripless shaft seal
  • Renewed the wiring for the generator disconnect switch
  • Repaired defective snaps for window coverings
  • Installed 110-volt outlet in lazarette for portable cooler
  • Organized all ship’s manuals into filing system
  • Installed two overhead grab bars to facilitate boarding on port side
  • Installed grab bar in guest cabin to facilitate entering the engine room
  • Installed grab bar forward to facilitate descending from the bow
  • Removed defective inverter and replaced with new
  • Sanded bottom of boat and painted with two and a half coats of new antifouling paint
  • Removed blades from bow thruster, cleaned, and painted with antifouling paint
  • Painted running gear with antifouling protectant paint
  • Cleared plugged vents for water tank(s)
  • Cleared plugged vents for black water tank
  • Removed old name from the vessel port and starboard and from the transom
  • Installed new Furuno GP-39 standalone GPS
  • Reprogrammed Garmin chart plotter

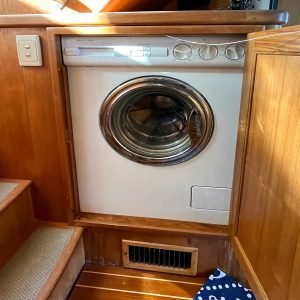

  • Repaired washing machine leak
  • Installed vent on locker door for propane locker
  • Installed new registration numbers on dinghy
  • Renewed all bonding wires in the lazarette and into the engine room and the wiring in the engine room
  • Replaced drive belts on the generator and on the main engine
  • Replaced the defective small alternator and installed new (for charging the main engine battery) on the main engine
  • Replaced the generator starting battery with Group 35 AGM battery
  • Installed new battery cable between the main engine battery and the parallel switch for the generator battery
  • Replaced the main engine starting battery with 4D AGM battery
  • Replaced all three house batteries with 8D AGM batteries
  • Found the wiring for the upper deck and wheelhouse wiring defective on the terminal strips in the stack.  Replaced both terminal strips and renewed the wiring.
  • Replaced the Racor fuel filter assembly for the generator.  Added a vacuum gauge to the unit.  Changed the secondary fuel filter on the generator.
  • Installed new reversing oil pump out system and connected to generator and main engine oil pans.  Installed new wiring and an in-line fuse.
  • Installed new washdown water hoses fore and aft
  • Installed new dinghy cover on dinghy
  • Installed new outboard cover on outboard
  • Installed new weather stripping on lazarette hatch
  • Remounted stack fans properly
  • Extensive work done to waterproof the stack system to keep water from entering the exhaust stack area and running below.  Stack drains replaced.
  • Installed new vacuum gauge on fuel polishing system
  • Installed new vacuum gauge on main engine fuel manifold
  • Renewed the flooring in the head
  • Changed primary and secondary fuel filters for the main engine
  • Replaced all belts on the main engine
  • Replaced both belts on the generator
  • Freed up ball valves for port and starboard upper water tanks
  • Installed new 12,000 BTU water cooled split A/C system for below decks cabins
  • Rebuilt Twin Disc reduction gear including new discs and seals

2024

  • Purchased wireless communication headsets (great for docking)
  • New reading lights in the salon (3)
  • New reading lights in the owner’s cabin (2)
  • New main engine and generator air cleaners
  • New freshwater pump
  • New faucet in galley
  • New 16,000 BTU air conditioner for the bridge
  • New teak and holly flooring in guest cabin
  • New teak and holly flooring in passageway
  • New teak and holly flooring in salon
  • New Y-Valve for head discharge
  • Updated air conditioning filters installed for all three A/C units
  • Cleaned the coils on all three A/C units
  • Installed new aft bilge pump
  • Current slip is transferable
