Nordhavn 55 TIPASA
| Name: | "TIPASA" |
| Model: | Nordhavn 55 |
| Designer: | Jeff Leishman |
| Builder: | Pacific Asian Enterprises |
| Year: | 2006 |
| Hull Material: | Fiberglass |
| Usage: | Family, Leisure, Cruising |
| Length: | 56' 1" - 17.09m |
| Beam: | 5.49 metres |
| Draft: | 1.98 metres |
| Displacement: | 52 metric tons |
| Designer: | Jeff Leishman |
| Builder: | Pacific Asian Enterprises |
| Hull Material: | Fibreglass/GRP Hand laid Vinylester resin outerlayers with hand laid epoxy resin and woven matt |
| Deck Material: | Non-skip GRP |
| Engine: | Lugger 1276 340 HP engine with keep-cooling and dry exhaust (Serial #: 1271-2764) Main engine hours as at Spring 2023,5650 hours Main engine hours as at December 2022,5650 hrs Northern Lights L984 wing engine (Serial #: 9841-2698) Wing engine hours as at Spring 2023, nominal 90 hrs ABT-TRAC digital active fin stabilizers Keel-cooled PTO for stabilizers on main engine Keel cooling Ferntsrum Grid Cooler CN1257U-E1 Fuel filters Racor Filter/Water Separator 75/900 MAX Rexroth Variable Displacement hydraulic vane pump on PTO ZF transmission Twin disk Model MG-5091SC Serial #: 5JS30 Fuel transfer systems with manifold Oberdorfer oil change pump and manifold Day tank for main engine Separate Day tank for wing engine Sea Fire automatic fire-suppression system Sea-water chest with two bronze strainers and manifold Northern Lights M844L generator 20KVA (complete top to bottom bench overhaul by Northern Lights), Hours as at Spring 2023,100 hours Access to water-tight door in the utility room and through hatches in the saloon floor Access to lazarette through water-tight door 24VDC and 110 VAC light Extraction fans Dayton squirrel cage blowers EDSON 638AL manual bilge pump Automatic bilge pump (high & low) Olsun 1 isolation Power Transformer Olsun 2 isolation Power Transformer Service access to TRAC hydraulic stabilizers Full-height water-tight door to engine room ABT-Trac stabilisation actuators (port & starboard Exel spreadsheet log of ship's systems maintenance. Access to Side Power SP 220 TC bow thruster Maxwell VWC 3500 windlass and Side Power thruster batteries. 200Ah new. Fresh water pumps (Jabsco x 1, Shurflo x 1) Manual discharge pumps/lever for grey and black water tanks Water heater Torrid MV-40-2 with engine loop GRP shelves for spare parts (list of parts in appendix) Ample storage |
| Engine Make: | Lugger |
| HorsePower: | 75 hp |
| Fuel: | Type Diesel |
| Engine Hours: | Main engine 5650 hours |
| Number Engines: | 2 |
| Engine Hours (2nd Engine) | Lugger Wing Engine 90 hours |
| Propulsion: | Conventional Shaft drive through stuffing box |
| Thrusters: | ABT bow thruster with control stations at main helm, flybridge and aft cockpit |
| Genset: | Northern Lights M844L generator 20KVA (complete bench overhaul by Northern Lights 2022) Hours as at December 2022,100 hrs |
| Water: | Village Marine 90 litre per hour, with new membranes ( not currently commissioned but ready for use) |
| Dinghy: | RIB Hypalon hard bottom 12' AB with FRP (new tube and cover 2021) |
| Outboard: | Outboard Enduro 15HP Yamaha & gasoline tank |
| Covers: | New flybridge canvas October 2022 New boat deck canvas awning October 2022 Foredeck canvas designed for shade and to also collect rain water and divert via hose to water tank |
| Region: | Asia |
| Location: | Krabi, Thailand |
| Asking: | US $1,050,000 |
Listing Broker
Sales Manager
- 1300 920 036
- +61.419 760 258
- peter@nordhavn.com.au
- For more information, click here to contact your Nordhavn sales person or the office nearest you.
Overview
AVAILABLE IMMEDIATELY,
Nordhavn 55 Long Range Passagemaker “MV Tipasa” 2006 model, currently lying Krabi Is. Thailand.
Extensive overhaul 2022 & 2023/ Log Book Maintenance
“Tipasa” holds Langkawi International Registry Certification. Langkawi is a duty Free Port.
The following are just some of “Tipasa’s” unique features:
The most popular factory options have been selected during design and construction including several smart additions for safety and comfort.
Boat deck arrangement: Open social space on the upper boat deck. Rather than using the boat’s upper deck as a storage space, converted into a dining settee for six with folding teak armchairs.
Boat deck cover: The strong stainless steel top frame removable and a canvas cover provide shade on the upper deck and adds space for a large array of solar panel (1000w).
The hydraulic crane remains operational for heavy loads, such as loading a motorcycle.
User-friendly swinging davits: The tender is stowed at the transom on a stainless-steel swinging davit operated by an electric winch, allowing the easy loading and unloading of a 12′ RIB and at the same time frees space on the upper deck.
Partition bulkhead: In the saloon, a partition teak bulkhead created to separate the kitchen from the saloon. On the saloon side, bookshelves and on the galley side, a panel to hang kitchenware, therefore providing a more usable layout of the kitchen.
This partition can easily be removed if necessary, at a nominal cost, using highly skilled local marine carpenters. A concept design and cost estimate is available.
In addition to the cozy classic yacht library atmosphere on the saloon side, a separate kitchen has proven to be much more convenient at sea when a crew, chef or stewardess is hired.
“Tipasa” is located close to the epicentre of Thailand’s secure marine onshore facilities at Phuket Boat Lagoon, Phuket Is.
https://www. Phuketboatlagoon. Com/
Services offered on site include Marine Surveyors, Marine Engineers, Shipwrights, Electrical Technicians, Shipwrights, In-water and Hardstand Boat Storage and Vessel Valet Service. This facility is an International Standard Marina for berthing, refit and service.
“MV Tipasa’s” experienced Captain is available for handover, thorough vessel familiarization, and if required, a shake down cruise.
Additionally, by negotiation, “MV Tipasa’s” Captain is available post-handover, to relocate the vessel to a buyers preferred shipping port in the region.
Accommodations
The general arrangement of the vessel is cleverly designed with companionways and access doors between the interior and the decks. A sheltered side deck to starboard allows the crew to move freely from the helm to the cockpit for docking manoeuvres without entering the saloon. On “Tipasa”, each crew member will find privacy. With a smart flow between the saloon, the staterooms, the wheelhouse and the decks, the crew will never have the feeling that the boat is crowded. All of the popular factory options have been selected but several improvements have eased the daily life and operations.
L-shaped settee with black leather Chesterfield upholstery together with two arm chairs reflects in the saloon, the atmosphere of a classic yacht with the flair of a home library decorated with some vintage marine instruments. White cotton covers are available and used for the settee particularly during the summer period which provides a distinguished lifestyle.
Wooden blinds
Large glossy varnished dining table with storage under
Marine lamps and vintage navigation instruments (optional, owners’s collection)
Four electric fans on ceiling
Pop-up LCD display and Bose sound system
Safety rail handle on ceiling
Courtesy lights
Crew bunk with air extraction, reading light, storage and air conditioning outlet
LG washer 7kg (replaced 2022)
General Electric chest deep-freezer (serviced 2022)
Ample storage
Cabins
Located in the centre of the yacht with two access doors to saloon and staircase
Three portholes with storm covers
Ventilation hatch to Portugese bridge
Extraction fan
King size Tempurpedic mattress
Courtesy lights
Air-con panels
Reading lights
Wardrobes, drawers and shelves
Writing desk with reading light, power outlets and armchair
Intercom handset (switchboard at the helm)
LCD TV and sound system
Ensuite large head with granite top
Shower with glass door and bath
Ample storage
Two gelcoated FRP shelves added in the shower/bath compartment
Full-height mirror in the head
Raritan Atlantes A5F24 electric toilet
Queen-size berth on the port side with storage under (4 large drawers)
Bedside table and shelves
Reading lights
Ample storage (wardrobe and drawers)
Sliding door between office and stateroom
Desk with swinging stools
Intercom handset
Storage lockers and bookshelves
Pullman style upper bunk over the desk
Courtesy lights
Ensuite head with shower
Toilet
Galley
General Electric trash compactor
Sink shredder
General Electric dish washer
Granite top
General Electric Propane range and electric oven
General Electric microwave oven
Ample storage for kitchenware, crockery and provisions
Galley appliances (kettle, toaster, etc. )
Ground Tackle
Safety Gear
Saloon windows with Plexiglass removable storm covers
Emergency tiller in lazarette
Rope cutter on main propeller shaft
Sea-Fire fire suppression system engine room and lazarette, in service date
Four stroke gasoline Crash and firefighting pump in Portuguese bridge. Brand new
Handheld fire extinguishers x 5
SeaAir liferaft 8 Pax (serviced October 2022)
Flares
Handheld VHF
EPIRB beacon
Oxygen tank with accessories
AED stored in guest cabin heads
Loud hailer on VHF
Parachute anchor
Electrics
Electric panel (12,24 VDC & 110/220 VAC) NAVIGATION AIDS & COMMS (WHEELHOUSE & FLYING BRIDGE)
Electronics / Navigation
Furuno Navnet chart plotter/sounder/radar x 2 in wheel house (one on flying bridge)
Furuno radar 12Kw scanner (72NM)
Furuno radar 6Kw scanner ( 64NM)
Simrad pilot AP50
Simrad follow-up steering FU50
Furuno AIS FA 150
Simrad rudder angle indicator R135 MK2
Furuno satellite compas CS50
Furuno Navigator RD30 x 3
Airmar weather station
Murphy main engine gauge
Icom MC602 VHF x 2 (one on flying bridge)
Icom HF/SSB MC802
Iridium handset with external antenna
Charles C-Phone switchboard with 4 handsets
CCTV system (4 cameras with new display. Located engine room, cockpit, boat deck and foredeck, with dedicated 17″ monitor
Pioneer Sound system with 2 Bose speakers
Simrad autopilot display
Communications (VHF, SSB, Iridium, AIS)
Computer with display on port side of dash board (AIS receiver and navigation app)
Night vision FLIR camera
Ritchie compass
Stidd 500 NL Lowback helm chair, with footrest helm seat with grey leather upholstery
L-shaped settee with teak table
Flags rack
Printer sliding shelf
Black ceiling over dashboard to minimize console glare while running at night
Red chart reading light
Flag pole rack
FM radio
Electric panel (12,24 VDC & 110/220 VAC)
Access to steering hydraulic reservoir under dashboard
Searchlight ACR BT-D with remote control in pilothouse
Courtesy lights
Loud-hailer on Icom VHF
Horn FI Model BT-D
Windshield wipers Exalto RC525991
Tankwatch Sealand monitoring system
Maxwell windlass controls, one in pilothouse and on each at portuguese control stations
Deck Gear
Open social space on the boat deck. Rather than using the boat’s upper deck as a storage space, the previous owner decided to turn it into an al-fresco dining settee for six with teak armchairs and creating a comfortable social area.
GRP storage locker for storage of gasoline used for tender and crash pump
Flopper stopper storage racks mounted on side rails
Bimini new canvas (2022)
Hi-Lo table on stainless-steel mount
U-shaped couch with storage under
Two helm seats
Dashboard with engine controls, thrusters, windlass, VHF, chart plotter, horn
Lockers with ample storage

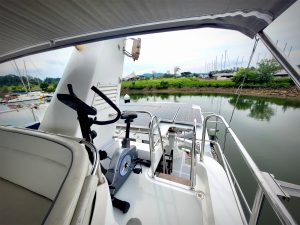

Brand new training bike secured on deck, with canvas cover (2022)
Large swim platform boarding and diving
Access to swim platform by transom door
Mooring cleats x 3
Swinging stainless-steel swim ladder
Scanvik transom shower
Storage lockers under the stair-case to the boat deck
L-shaped grated teak settee on the transom bulkhead
Large hatch to lazarette
Engine control, windlass and thrusters for docking
Waterproof 220VC outlet
Sink
Bauer diving air compressor in the lazarette with filling station for four tanks
Storage area
SeaStar HC5373YC steering cylinders x 2 with two auto-pilot pumps (main and backup)
Access to Side Power SP 220 TC stern thruster
House & engines battery bank with batteries switches
Emergency tiller
Mastervolt 220/24V shore battery charger
Sea Fire automatic fire-suppression system, in date
Glendinning Cablemaster dock power cable retriever with drum
Cruisair air-conditioning compressors
Charger/inverter 24/120 Xantrex/Trace
Wing stations (port and starboard) with engine controls, horn, windlass and thrusters
Storage lockers for warps and general boat handling equipment
Fire fighting: For safety purposes a gasoline pump and a firefighting hose and nozzle are on stand-by in the port locker. The pump
may also be used as an emergency crash pump in case of major flooding.
Wheel house canopies: Two stainless-steel and canvas canopies shelter the wheelhouse side doors
Access door to foredeck with stainless-steel pantograph hinge
Safety: stainless-steel railing (granny bars) for safer operations of the windlass in case of rough weather
Maxwell 3500 windlass with chain stopper and snubber line
3 hatches to forward cabin, office and head
Chain well with new 300′ galvanized chain (2021)
Chain well Manship hatch
Anchor line: FRP shelves in the anchor well for secondary mooring line
Pulpit with flagpole
Folding seats at the bow for observation
Secondary anchor on bracket (Fortress aluminium)
Shore power connectors
The boat deck can easily be accessed from the stairway leading up from the cockpit, or from the pilot house on the port side. Usually used on Nordhavn 55 as storage for the RIB, it has been converted into an al-fresco dining settee and outdoor lounge under a strong stainless-steel frame with a new cover canvas (2022) providing shade to the settee.
A large array of 1000 W solar panels
Dining Table 6 pax and folding teck armchairs
The original Aritex HSC 600S hydraulic crane remains operational for lifting heavy loads (up to 590 kg. )
Custom made mahogany marine trunk for cushion storage
Stainless-steel brackets for stowage of paravanes
Village Marine wartermaker 90L/h. New membranes, not activated
Flexible tender options:
The boat deck hydraulic crane remains operational for heavy loads should the need arise, such as for loading a motorcycle or jetski.
User-friendly swinging davits at transom: The tender is stowed at the transom on a strong stainless-steel swinging davit operated by an electric winch. This
custom designed davit system allows the easy loading and unloading of a 12′ RIB and at the same time frees space on the upper deck for an open, under cover entertainment area
Remarks
APPENDIX 1:
Vessel hauled August 2023 for scheduled maintenance and antifoul.
UPGRADES, OVERHAUL WORKS & SERVICES carried out in 2022.
Cruiser air conditioning (gas refill) and owner’s stateroom compressor replaced
Village Marine watermaker (new membranes)
New battery bank
Chest deep freezer compressor
Full bench strip down Generator overhaul by Northern Lights
New displays at helm
Sea-Fire suppression fire system overhauled in September 2022
RIB and outboard service
AED (battery-operated device to help people having cardiac arrest)
APPENDIX 2:
ADDITIONAL EQUIPMENT & MISCELLANEOUS ITEMS
Wheel-house Batyline window covers
Shop compressor in lazarette
Personal decoration items
Tools specific to the systems on the vessel
RIB Hypalon hard bottom 12′ AB with FRP (new tube and cover 2021)
Boarding stanchion bolted on RIB floor
Outboard Enduro 15HP Yamaha with petrol tank
Outboard bracket in the cockpit
Hooker underwater dive system with 25 metres of hose, for underwater maintenance
Spare mooring lines (new x 4)
APPENDIX 3:
LIST OF SPARE PARTS
FORWARD MACHINERY SPACE, shelf under workbench:
Raw water air-con cooling pump
110VAC water pump
Strainers of various sizesl
SHELF UNDER BATTERIES:
Filters for watermaker
High pressure watermaker pump
Raritan head parts and macerator motor
Stabilizer fine-tuning cable
Battery charger 120VAC/24VDC
AFT COMPARTMENT SHELF:
Green storage plastic box generator (belts x 3, glow plugs x 4, bolts & nuts, cooler boots x 2, top cover gasket, 24V relay, various gaskets, vented loop x 2, fuel sensors, 1 thermostat, fuel injectors nozzles x 4, impeller x 4, reconditioned raw water pump, crankshaft bearing x1.
Green storage plastic box main engine (starter relay, belts, rocker arm cover gasket, coolant pump repair kit, fuel filters Johne Deere, air filter, fuel pump, fuel injectors x 2)
Green storage plastic box wing engine (various gaskets, thermostat, oil filters x 3, fuel injector x 4, air filter, starter motor)
Green storage plastic box misc. (Lugger air filter, raw water pump repair kit, generator fuel filters x 7, generator oil filter x 3, wing oil filter)
Plastic drawers x 6: Small spare parts hardware, electric, tender, etc.
FRP shelves near the ladder:
Anchor windlass motor, grey/black water pump motor, fuel transfer pump, rudder bearing and seal, temperature sensor cable for air conditioning, parts for Par bilge pump, air-con display, Rule bilge pump)
Clear plastic boxes near batteries:
Diving regulators, electric cable, plumbing spares, doors handles & locks)
ENGINE ROOM AND UTILITY ROOM:
Various Raccord fuel filters
Tools and tool boxes
Main engine starter (port side locker in utility room)
Special purpose tools
Chain hoist 1500 kg
Hydraulic jack
Stuffing box packing
