GENERAL LAYOUT

Enter through the cockpit/aft salon Dutch door into the salon.  A hanging locker is immediately inside, to starboard, and the salon lays out forward connecting with the galley.  The dining table and settee are to starboard, forward is a crescent shaped settee and one comfortable Ekornes chair and ottoman. A 49” Samsung LED TV is located centerline facing forward.

 To starboard of the dining area is another Dutch door for easy galley and utility room access and stairs up to the pilothouse.  Forward of the pilothouse stairs is a stairwell leading down to the utility room and engine room.

 Moving forward past the galley is a hallway leading to the main electrical distribution panel, master stateroom, guest stateroom, and pantry. In the hallway to port is the master stateroom with king bed and bath ensuite.  Just across the hall is an extra-large pantry with room for ship’s stores and cleaning items.

 Forward of the pantry is the guest/day bath which can be joined to the forward guest stateroom by closing the hallway door, making this an ensuite bathroom.

 Access to the guest stateroom is forward.  The guest stateroom includes a centerline queen bed with access on each side, lots of drawer & locker storage, and a desk with a pull-out chair and book shelves is to starboard.

 A hatch in the forward cabin sole accesses the forward machinery space containing plumbing and mechanical systems, including hydraulic components, water makers, water heater, freshwater pumps and black/gray water pumps and other mechanical equipment.

The utility room which is forward of the engine room, is accessed from the stairwell at the base of the pilot house stairs.  There is a separate washer and dryer, an additional freezer, locker and drawer storage, a vanity with sink, a single crew berth and a pipe berth for additional crew. There is an oversized engine room door with a window.

 Returning up the steps to the salon, and immediately aft, are the steps up to the pilothouse.  The pilothouse of Amnesia provides the perfect gathering spot for the crew to sit on a raised settee with an ample table for dining, games, reading and more.  Forward of two very comfortable Stidd helm chairs is the instrument console.  You will find yourself spending memorable hours here at command central!  There is a double bed and ensuite head, which is very convenient for the operating crew and/or extra guests.

The pilothouse forward windows are reverse-raked for glare reduction, and the overhead panel fabric is black to also reduce glare.

Salon

• Headroom:  6′-10″
• Teak dinette table and lower height teak coffee table
• L-shaped settee (starboard side) and U-shaped settee (port side) with Ultraleather upholstery
• Seating on both port and starboard sides
• Light teak interior with horizontal grain
• Custom porthole blinds
• Samsung 49″ LED TV mounted on aft bulkhead with locker & granite top
• Custom shades on all windows
• Aft Dutch door for ventilation with windows above and below
• Separate heat and air-conditioning zones
• Teak floors
• Novasuede Strong White Headliners
• Flat panel doors throughout
• One Ekornes chair & ottoman

Galley

• Headroom:  6′-10″
• Wolf induction range and oven
• Two GE refrigerators with two freezer drawers & ice makers
• Caesarstone pure white countertops and backsplash
• Bosch ultra-quiet dishwasher
• GE trash compactor
• GE Monogram microwave
• Kohler SS sink
• GE dishwasher
• Walk-in pantry in hallway
• Granite tile flooring
• Custom wine glass holder

Master Stateroom

• Headroom: 6′-8″
• Sky screens on overhead hatches
• Samsung 40″ LED 4K TV
• Sat TV receiver
• Two large port holes for fresh air ventilation
• Custom wall to wall carpet over teak

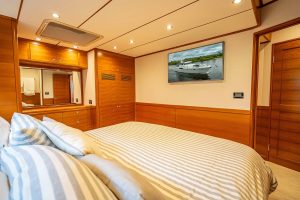

• King size berth
• Ensuite head with Caesarstone countertops
• Passport safe in hanging locker
• Mirror above drawers

Guest (Forward VIP) Stateroom

• Headroom:  6′-10″
• Sky screens on overhead hatches
• Desk area with pull-out stool & bookshelf
• Samsung 43″ LED TV
• Access to machinery space
• Custom wall to wall carpet over teak
• Port holes for ventilation

MECHANICAL

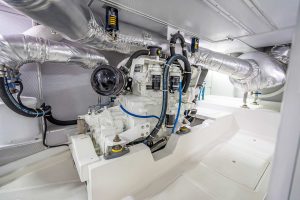

Main Engine

• John Deere 6090AFM85 – 325 HP @ 2200 RPM, keel cooled & dry stack (approx. 1270 hrs.)
• Fitted with 175-amp large case alternator to charge house batteries
• ZF W325 reduction gear
• Clutched PTO for hydraulics
• Five blade prop 4″D x 31.5″ pitch
• Spurs line cutter on shaft
• Propeller shaft 3″
• Dry exhaust 5″
• PAE designed oil change system
• PSS dripless shaft
• Secondary 40 AMP small case alternator to charge starting batteries

Wing Engine

• John Deere 4045TFM85 – 100 HP @ 2400 RPM (approx. 18 hrs.)
• ZF 631V 2.477:1 V-drive transmission
• Morse cable controls in pilothouse
• Dedicated separate fuel tank
• Gori folding prop

Generator – Northern Lights 20kW (approx. 323 hrs.)

• Sound enclosure with double isolation mounts
• Useful for bigger loads
• Start/stop controls on enclosure and electrical panel
• Center water lift muffler
• 83 amps total output

Generator – Northern Lights 12kW (394 hrs. approx.)

• Useful for lighter loads
• Redundancy
• Start/stop controls on enclosure and electrical panel
• 50 amps total output

Hydraulic System by ABT

• ABT #300 TRAC digital active fins with digital controls
• Side-Power bow and stern thruster – 15 HP and 24V (not hydraulic)
• PTO mounted on main engine

HVAC System

• CRUISAIR with SMX controls
• HVAC system includes reverse cycle heating & heat strips
• Seven zones

On Deck

• Steelhead ES1500 lb. davit on foredeck (canvas protected)
• Extended swim platform with staple rails and boarding ladder
• Upper aft deck settee and table
• X8 Sea-Vison SV19 under water lights (switch in salon)
• 30-gallon gas tank with 24V pump for tender
• Cockpit sink with storage locker
• Glendinning shore power system (65′)
• Clamp on BBQ
• X2 Imtra offshore LED deck lights for foredeck
• X1 Imtra offshore LED deck lights for stern deck
• 24V ACR RCL 100 LED searchlight
• X2 propane tanks (20 lbs. each)
• Port and starboard drive stations – Mather controls, windlass and thrusters
• Cockpit drive station – Mather controls, windlass and thrusters
• Storage locker installed near davit

Anchoring

• Maxwell 24V VWC 3500 windlass
• 170 lb. stainless steel anchor
• 400′ of ½” chain
• Maxwell chain stopper lock
• Foredeck raise and lower windlass controls

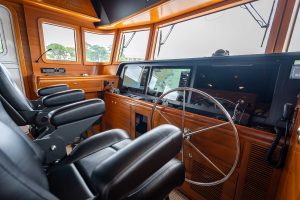

Pilothouse

• Captain’s cabin with double bed
• Bath with shower
• Pilothouse settee with table and book case
• Bonded windows with FRP trim
• Two black Stidd chairs
• Norcold mini fridge
• Novasuede black headliners
• Night time chart light
• Custom blinds in captain’s bunk
• Ritchie 4.5″ compass
• Full carpet to include captain’s cabin

Navigation & Communication Electronics

• Furuno FA170 AIS Transponder
• Furuno NavPilots 711C din-display (2)
• Steer Straight CR4200 pumps with soft shift valves 24V (2)
• Furuno GP33 GPS 4.3″ LCD
• Furuno NMEA2000 GPS/WAAS sensor
• Hattland fanless computer i5, 2.4GHZ, 8 GB RAM, 150g SSD-M
• Logitec wireless mouse and keyboard
• Nobletec TZ professional
• Jeppesen map media chart, US West Coast, East Coast and Canada
• Furuno TZT2BB black box processor
• Netgear GS 108 port-hub
• Furuno NMEA amplifier (one in and eight out)
• Bronze thru-hull transducer with temp, built in diplex
• Furuno 12kw radar
• Furuno XN13A 6′ open array antenna
• Furuno DRS4DNXT solid state dome radar
• Seatronix 24″ touchscreen monitors (3)
• Furuno FI 70 wind kit
• Furuno FI70 4.1″ LCD display
• Icom M506 DSC VHF radios with rear mic (2)
•  Comrad 16′ antennas  (2)
•  Simrad loud speaker
•  Intellian S6HD dual band HD TV satellite system
•  DirecTV HD satellite receiver
•  Flir MD-625 thermal camera
• KVH Tracphone LTE-1 system
• Furuno SC 70 satellite compass

Entertainment Electronics & CCTV/Monitoring

• Samsung 7000- Series 49″ LED TV
• Fusion RA770 Apollo Series touchscreen Bluetooth radio
• Fusion MS-AB206 active subwoofer with built-in amp
• Fusion MS-SG41400 (4) channel signature amp 1400W
• Fusion SGC-65w 230-watt speakers (2)
• Fusion SRX400 Apollo series zone stereo
• Axis M3026-VE day/night IP camera (5)
• Cockpit Fusion 230-watt speakers (2)
• Upper aft deck Fusion speakers
• Siren-Marine MTC monitoring and tracking device
• Five GOST door contact sensors

Utility Room

• Miele washer
• Miele dryer
• Vanity with sink
• Crew bunk with bookshelf
• Pipe berth bunk
• Integrated front-loading freezer (4 cubic feet)

Engine Room and Fuel System

• PAE designed fuel transfer & polish system
• 10-gallon wing engine fuel tank
• Oil change system with manifold (M/E, gens, wing)
• 24V Walbro fuel transfer pump
• Multi-fan intake blowers and one multi-fan exhaust blower (2)
• Stainless steel railing around engine

Lazarette

• Sea-Fire FD1300m fire suppression system
• Hynautic hydraulic steering system
• New House battery bank (Jan 2023)
• Outback 24V – 3500-watt inverter/chargers with remote panels (2)
• ASEA AC15 power converter for worldwide power
• Bauer Jr. dive compressor
• Emergency tiller steering system
• Four new scuba tanks

Electrical Shore Power

• Glendenning shore power system (65′)
• Olsun isolation SGS 12 YY transformer
• Olsun balancing SGS 7.5 HD transformer
• Smart plug 50-amp inlet – 120/240 volt (foredeck)
• Smart plug 30-amp inlet – 120 volt (foredeck)
• TV/phone inlet (foredeck)
• Smart-plug HVAC 240v inlet (foredeck)
• Galley, head and exterior outlets run through GFCI

Battery Charging

• ASEA AC15 power converter; will accept worldwide power
• Dual 3500-watt Outback inverters/chargers
• 175A of main engine alternator charge capacity
• Wing/generator start batteries charged by wing and generator alternators
• 20kw and 12kw gen charging for house bank

Inverter Service

• Transparent switching between inverter power & shore or generator power – manual bypass switches
• Dual 24V 3500-watt Outback inverters/chargers with remote panels
• Eight 255-amp hour Lifeline 8D batteries

Generator Service

• 20 kW Northern Lights primary generator with 83-amp output
• 20 kW generator has start/stop controls on enclosure
• 12 kW Northern Lights secondary generator with 50-amp output
• 12 kW generator has start/stop controls on enclosure

Water System

• 600-gallon freshwater baffled fiberglass tank
• Wema water tank gauge
• SeaLand tank watch 4 monitoring system for toilets
• 40-gallon hot water heater – electric heat (one), heat from main engine while underway (two)
• Groco accumulator tank
• Tecma toilets with Y-valves for overboard discharge

Tender

• 11′ Highfield SP330 tender with aluminum hull
• 25 HP Yamaha outboard
• Six-person rated
• Eight-gallon fuel system
• Bilge pump

Safety

• Sea-Fire FD 1300M fire suppression system in engine room
• Sea-Fire FD 1050m fire suppression system in lazarette
• Handheld fire extinguishers
• Life jackets
• Flotation device
• Electric 24V par pump with ultra switch
• Rule 3700 submersible “high-water” bilge pump with ultra float foot sensor
• Gray and black manual pumps
• Winslow life raft – to be serviced this year
• Edson manual bilge pump
• Seven Kidde smoke/CO alarms
• Aluminum ladder for tender boarding on foredeck

Extra Additions

• New fenders
• New dock lines
• Epson printer and scanner
• Cockpit teak table and chairs
• Deck locker near davit
• Two kayaks with mounting brackets

Exclusions

• Personal items
• Electric bikes

Contact:  Valerie Weingrad (678)361-5253  valerie.weingrad@nordhavn.com

Video walk throughs available
