Nordhavn 63 TRUE BLUE
| Name: | TRUE BLUE |
| Model: | Nordhavn 63 |
| Year: | 2013 |
| LOA: | 62' - 6" (19.5 m) |
| LWL: | 57' - 3" (17.45m) |
| Beam: | 18' - 0" (5.49m) |
| Draft: | 6' - 8" (2.03m) |
| Displ. | 143,000 lbs (64.86 MT) |
| Fuel: | 2,500 US gals. (9,464 L) (in four FRP tanks) |
| Water: | 600 US gals. (in FRP tank) |
| Engine: | Lugger L1276A.2C/MG5091 – 340 HP @ 1800 continuous (4,328 hrs) |
| Range: | (Approx) 3,000 nm |
| Hull Color: | Grey |
| Location: | San Diego, CA |
| PRICE: | SOLD |
Overview
***US duty paid – LLC owned***
“True Blue” is a recent model Nordhavn 63 (2013) that shows like new! She has the desirable aft pilothouse design, custom galley layout, full hydraulic system (including bow and stern thrusters, anchor wash and emergency bilge pump system), upgraded Lugger 1276 engine, upgraded Maxwell 4000 windlass and is well equipped with all of the comforts of home for extended cruising. She is a must-see and ready to take her new owners anywhere in the world.
The current second owner has kept “True Blue” in immaculate condition both cosmetically and mechanically including all new upholstery (August 2024) and new varnish and full waxing (March 2024).
New January 2025 yard work:
- Bottom paint, thru hulls and zincs
- Repainted boot stripe with six coats
- Sandblasted and resurfaced interior and exterior of both pilothouse doors
- Polish and two coats of wax
- Resurfaced and new gelcoat on all exterior blemishes
***NEW asking price $1,920,000***
Specifications
***US duty paid – LLC owned***
General Arrangement
Enter into the salon from the cockpit through the aft salon Dutch glass door. To starboard is a crescent shaped settee with cushions upholstered in Ultraleather. The cabin interior is upgraded with beautiful teak book match panels. To port are two new Ekornes Stressless chairs and ottomans, along with a teak coffee table.
The spacious custom “dog leg” style galley offers much more room than the standard layout. The galley is equipped with full-size high-end appliances and offers ample storage throughout.
Just to starboard of the galley is the hallway leading to master and guest staterooms forward. Outboard to starboard are the stairs leading down to the utility and engine room. Also to starboard, at the forward end of the settee, are the steps up to the pilothouse.
Natural light enters into the salon and galley area through three large windows on port and starboard sides of the cabin. All windows are installed with hi-tensile adhesive for a permanent water-tight seal, and easy rinse-down maintenance.
Up in the pilothouse, there are sleeping accommodations in the “captain’s/guest cabin”. The head serves that cabin, or as a day head. The instrument console displays information beautifully, from an array of high quality electronics, and there are two Stidd helm chairs (2nd chair installed 5/23).
INTERIOR – GENERAL
- The overhead panels are upholstered in Majalite cream color, except in the forward pilothouse section, where the color is black, which helps with glare reduction
- The salon settee, pilothouse, and guest cabin changing seat cushions are upholstered in Ultraleather
- Framed panel joinery doors of teak with book match inlays
The engine room is well insulated, including the engine room doors. In the living spaces there are insulated bulkheads and rubber gasketed interior doors. The salon sole is four inches thick and cored with Nida Core. Below are two more inches for foam engine room insulation with a perforated plate layer covering it.

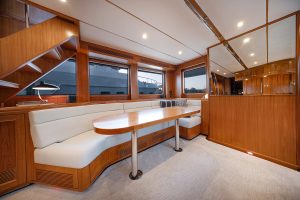

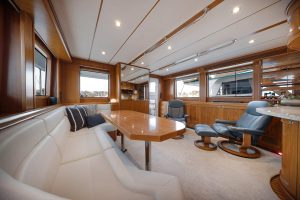

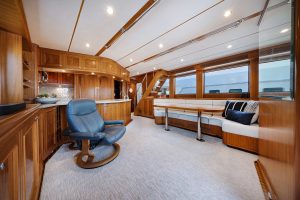

Salon
To starboard is a long crescent shaped settee with a beautiful teak dinette table.
The settee is upholstered in Ultraleather with a considerable amount of storage beneath the settee and behind the settee back rest. The TV is mounted on an electric lift to port creating an easy viewing angle for all in the salon – when not in use the TV can be lowered and stowed out of sight. There are air-conditioning soffits above the port and starboard windows for broad dispersion of cool or warm air. The soffits join valences for the window coverings below. There is also Soundown insulation on the salon sole which provides a quieter interior.
“True Blue“has sun shades mounted in the valances that are very effective for reducing UV and heat loading in the interior and also provide some insulation for cooler conditions outside.

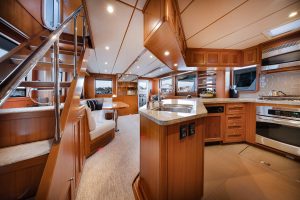

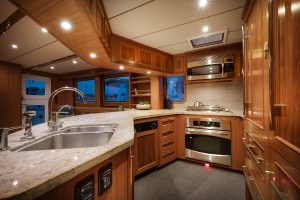

Galley
“True Blue“ has the best equipped galley of any Nordhavn 63 model. She has two Sub-Zero 700 refrigerators each with two freezer drawers with icemakers, as well as a Seagull water filtration system. Other appliances include a GE convection microwave, GE gas cooktop, GE electric oven, GE dishwasher and GE trash compactor. In addition to the standard complement of storage space, is the large custom “dog leg” counter top similar to the iconic Nordhavn 62 model. This allows for a much larger galley and countertop area than the standard Nordhavn 63 arrangement. There is a deep, double bowl stainless steel sink mounted in the granite counter, and a Grohe faucet. There are overhead lockers above the main galley granite counter top. The space is accessible fore and aft through book match teak wood locker doors.
Hallway Access
The hallway provides easy access fore and aft to the staterooms and pantry without passing through any cabins.
The main electrical distribution panel is in the hallway just forward of the salon. Further forward and to starboard is a large pantry with convenient shelf storage.
Forward and to port is the entrance to the owner’s cabin. Further forward to starboard is the guest head. A door just before the head encloses the guest head in the hallway into the space of the forward guest stateroom, which is all the way forward in the hallway.

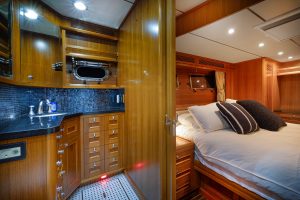

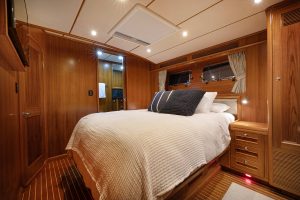

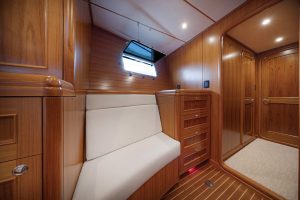

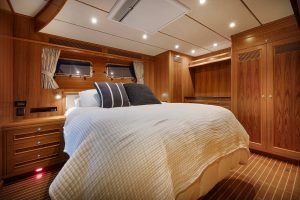

Owner’s Stateroom & Head
Fitted with a queen-size mattress, lots of storage space, head and shower, this cabin offers total comfort. There are hanging lockers and lots of drawer space, including night stands fore and aft of the head of the bed. The flat screen TV is mounted on the wall adjacent to the foot of the queen bed.
There are two large rectangular opening port lights in the alcove above the head of the bed, and a large hatch overhead for light and ventilation. Ports and hatches are equipped with screens.
The owner’s head is aft in the cabin. It is comfortably sized, and has a shower stall, granite topped vanity, Tecma fresh water head and custom tile backsplash.
Guest Stateroom

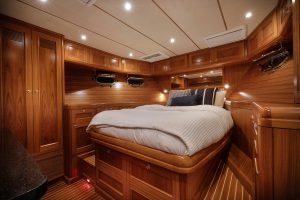

The forward stateroom features a centerline bed (58″x76″), lots of storage space in multiple drawers and several lockers, five opening portlights and three deck hatches. All ports and hatches are fitted with screens.
There is a large stand-up utility/work space below the sole of the forward stateroom. It provides easy access to the water heater, water maker, upgraded hydraulic bow thruster and anchor wash, freshwater manifold, and house fresh water pump. There is sufficient space for storage of spare parts and other items.
Pilothouse
Just outboard of the entrance to the hallway are the steps leading up to the pilothouse which is fitted with a large settee, teak table and two Stidd helm chairs (2nd chair added 5/23). There is a double bed and ensuite head, which is very convenient for the operating crew and/or extra guests.
The pilothouse forward windows are reverse-raked for glare reduction, and the overhead panel fabric is black to also reduce glare. The windscreen wipers are fitted with fresh water washers.
The Nordhavn 63 pilothouse is expansive, overlooking the foredeck and much of the length of the boat. Outside the pilothouse doors are both starboard and port side wing control stations allowing for easy docking and visibility.
Electronics
“True Blue”is fitted with an extensive marine electronics package and components that were supplied and installed by Alcom Marine and updated by Topcat Engineering, who has done a majority of all electronics on Nordhavn yachts for the last 25 years. Electronics dash layout was completely replaced with new panels and custom installation.
Electronics Inventory
- Seatronx 24” glass pilothouse displays (3)
- Furuno DRS12A 12kw 72 nm UHD radar
- Lenovo solid state PC running Time Zero Pro v.5.0
- Furuno Black Box Navnet w/ keyboard
- Furuno 4kw digital radar dome antenna
- Furuno dedicated Nav-Net 3D hub (2)
- Furuno digital fish finder
- Furuno dual frequency 20/200 1kw with temp and HSF
- Furuno RD 33 digital repeater NMEA 0183 and 2000 compatible
- Long reach depth sensor with black NMEA 2000 output
- Simrad RC42 rate compass (2)
- Accusteer HPU 212-200 pump with soft shift valves 24vdc (2)
- Raymarine CAM 100 CC TV camera (2)
- Starlink flat high performance antenna w/Wi-Fi
- Cellular HP antenna integrated to Wi-Fi
- KVH Trac Vision M7
- Furuno FA 150 Class A AIS transponder with display
- Shakespeare 5225XT galaxy VHF antenna (2)
- Furuno satellite compass model SC 50
- Furuno GP33 GPS Standard horizon GX5000
- Squantum fixed mount VHF radio (2)
- Simrad FU80 follow up jog lever (3)
- Simrad AP70 control unit (2)
- Simrad AC80S autopilot computer with solenoid drive (2)
- ACR RCL 100 spotlight w/ remote
Audio-Visual
- Sonos sound bar surround system w/ subwoofer
- Two (2) flat screen TVs (salon & owner’s stateroom)
Utility Room
To starboard of the galley, steps lead down to the utility room. This room is equipped with separate washer, dryer (both installed new in late 2022) and freezer. There is also a lot of storage space in ten drawers and some locker and shelf space. “True Blue” is fitted with a fixed berth and one pipe berth for additional sleeping space. A granite topped vanity with sink was also installed.

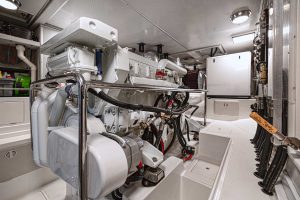

Engine Room
The Nordhavn 63’s engine room offers full standing headroom in the forward section which allows for easy maintenance and movement around the equipment. There is a stainless-steel guard rail around the main engine. The stabilizer actuators are located forward in the port and starboard alcoves. Sight gauges are on the port and starboard engine room main fuel tanks as well as the supply tank, all of which are part of the gravity feed fuel system. The main engine duplex Racor filters, and the transfer system Racor filter are easily accessed in the alley to starboard of the main engine.
Mechanical Equipment
- Main engine – upgraded Lugger L1276A.2C/MG5091 – 340 HP @ 1800 continuous (4,100 hrs)
- ZF ZFW325 3.958:1 reduction gear 3″
- Aquamet 22 propeller shaft 5-blade bronze propeller
- Mathers electronic controls in pilothouse, starboard wing station, port wing station and engine room
- Main engine is configured with dry stack exhaust and a Fernstrum keel cooler
- Full hydraulic system including upgraded Maxwell 4000 windlass (vs. standard 3500), bow and stern thrusters, anchor wash and bilge pump
- 1 ea. 24-volt, 175-amp large case alternator for house battery bank charging, and 1 ea. 24-volt, 40-amp alternator for engine battery charging
- Wing engine – Lugger L-944-D 65 hp with Hurth V-Drive transmission fitted with 3-blade Gori propeller (379 hrs) Wing engine is raw water cooled with wet exhaust
- ABT TRAC #300 digital active fin stabilizers 12 sq ft fins
- PAE designed oil change system Cruisair air-conditioning system with SMX controls: 48k Btu remote compressor Engine room ventilation consists of two intake and one exhaust 12″
- Multifan units, controlled with Multifan speed controllers, and operated off of inverter service
- Seafire FD 1300M fire suppression system installed in the engine room, with shut down for main engine, generator and blowers. Also equipped with manual pull cable.
Electrical Equipment
- 20 kW 240-volt 60hz Northern Lights primary generator installed in sound shield in the engine room (1,300 hours)
- Two stacked 3,500-watt Outback inverter with remote panel located on main distribution panel
- Mastervolt 50hz battery charger
- Inverter bypass switch installed
- Shorepower inlets on forward face of Portuguese bridge for 220v ship’s service, dedicated air-conditioning service, and 120-volt 30-amp ship’s service
- Xantrex battery
- New Isolation transfer with shore power boost, 6/27
Plumbing Equipment
- 800 gals. of freshwater
- 40-gallon Torrid water heater has electric heating elements as well as engine waste heat Headhunter Mach 5 fresh water system pressure pump
- Groco accumulator tank
- Plumbing is whale-type tubing and fittings
- Manifold for isolating fresh water circuits throughout the boat
- Village Marine Squirt STW 600 gal/day 240-volt watermaker
- All toilets are Tecma 24-volt fresh water flush
- 120-gallon fiberglass black water tank
- 110-gallon gray water tank
- Tank level monitor systems for each of the black and gray water tanks
Deck Layout
- Wide swim step with four 2″ diameter staples
- Diver boarding ladder
- Cockpit hatch access to lazarette, and engine room
- Transom boarding door
- L-shaped handrails on transom
- Cockpit console with sink
- Starboard side deck
- Stainless handrails on bulwark caps
- Steps at forward end of side deck up to Portuguese bridge and pilothouse deck
- Ladder aft to pilothouse roof
- Handrails along port, forward, and starboard sides of pilothouse
- Custom sun shade on the aft pilothouse deck
- Two large storage lockers in Portuguese bridge
- Large foredeck for tender storage
- Steelhead davit Freeman, commercial grade cast aluminum anchor locker hatch
- Dual bronze anchor rollers
- Receptacles for 240-volt 50-amp shore power and dedicated air-conditioning power cords
- Receptacles for 120-volt 30-amp power cord
Deck Equipment
- Maxwell VWC 4000 hydraulic windlass and chain stopper
- 400′ of 5/8″ HT chain 170 lb. stainless steel plow anchor
- Steelhead ES 1500 davit mounted on deck
- Extended swim step with 4 ea. movable stainless steel staples
- Transom boarding door
- Starboard side deck with high bulwark and midship boarding door
- Stainless steel rails mounted on bulwark caps for convenient hand hold and fender locations
- Portuguese bridge has two large storage lockers incorporated into the aft face
- Ladder access from aft pilothouse deck to pilothouse roof
- New Highfield Sport 390 (with only 81 hours) with a Yamaha F60LB elec. trim and tilt 8/2021
- Custom tender mounting chocks
- Flopper stopper rigging for at-anchor stabilization
- ACR EPIRB
- Emergency tiller engages rudder stock for direct control of the rudder
- Numerous spare parts
New Items 2021/2022
- New Highfield Sport 390 tender (with only 81 hours) w/ Yamaha F60LB, elec. w/ trim & tilt, 8/21
- New Bosch washer and dryer 8/22
- BRNKL security/monitoring system
- 6-person Viking liferaft, UKSL-RescYou Pro
- New Smart TVs
- PA-60/40 deck horn 60watt
- Raw water pump-gen.
Recent Upgrades:
Services/Maintenance – All services complete and up-to-date
- ABT stabilizer and thruster major service – seals, oil, zincs, S3 Marine, 5/23
- Upgraded Lugger 1276 engine – completed 2,500 hour service – Tri County Diesel, 5/23
- Upgraded Maxwell 4000 winch – cleaned, lubricated and serviced 8/23
- Transmission service completed 3/24/24
- Main engine oil change current – every 250 hours, 3/24/24
- Main engine primary and Racor fuel filters current – within service guidelines, 3/24/24
- Main engine primary air and air/oil separator filters replaced 3/24/24
- Wing engine oil and fuel filter changed 3/24/24
- Generator oil and fuel filter changed 3/24/24
- Wing, genset and hydraulic impellers and zincs changed on 5/24
- Genset and wing engine heat exchangers cleaned 2/23
- All fire extinguishers and Seafire system serviced 2/23
- All air filters cleaned or replaced per service manual 3/24
- Village Marine water maker serviced, pump oil and filters changed 3/23
- Tender serviced 60hp Yamaha 6/24,
- 81 hours total New Isolation transfer with shore power boost, 6/27
Repairs – no deferred maintenance
- Replaced control board on galley freezer
- Fuel solenoid and starter replaced on wing engine, 9/23
- Replaced steel ball bearings (32) on Portuguese and cockpit doors
Upgrades
- New navigation technology – Lenovo computer, Time Zero V5 software, three new Sea Tronix 24″ monitors 4/23
- Furuno tech sea trial to certify configuration and operation of all electronics 5/23
- Added new Horizon VHF radio for redundancy, 4/23
- New STIDD chair, 5/23 All new upholstery, 8/24
- New ACR RCL 100 spotlight installed, 3/23
- New black oak light bar installed, 3/23
- Factory refurbished (new motor, magnetron, etc.) of open array radar, 4/23
- Factory refurbished GP33,4/23
- Upgraded barnacle boat monitoring system from 3G to 5G, 4/23
- New Simrad FU80 autopilot jog levers installed at port and starboard wing stations, 5/23
- Installed new stop, start and horn switches at port and starboard wing stations New Starlink system installed 3/23
- New HTM4 fenders 4/23
- New teak furniture 4/23
- New stressless Ekornes chairs with ottomans 9/23
- New Timezero charts
- Condition – considered best in show, Anacortes Boat Show 5/23
- New ceiling panel covers throughout 10/23
- Upgraded exterior lights to LED, Cool White Applied two topcoats of Flagship Varnish on cockpit caprail 11/23
- Full wax 3/24 Main prop tuned and prop speed 9/23
- Professionally cleaned all interior carpet 5/23
- New upgraded linens throughout New bottom paint 9/23
- All HVAC condensers and air handlers serviced LLC owned – no sales tax US flagged vessel
Disclaimer: The Company offers the detail for this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
