NORDHAVN 52
‘SONAS’

ALL LISTINGS

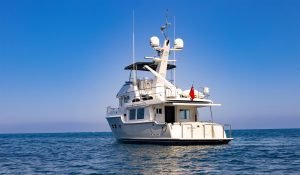

Nordhavn 52 SONAS

MakeNordhavn 52
NameSONAS
Hull number70
Year2014
LOA54'4"
LWL48'3"
Beam16'1"
Draft5'11"
Displacement90,000 lbs
Cruising speed7.5 knots
Max Speed10.5 knots
Range3,500nm @ 7.5 knots
ColourGrey
DeckFerro White / Non-skid arocoat light grey
Main EngineJohn Deere 6068AFM75
Wing EngineLugger L844D 40hp wing engine- (56 hours)
Generator(s)Northern Lights 12KW generator
Fuel Tank1,740 gals (US) (6586.6L)
Water tank400 gals (US) (1514L)
Currently LyingSpain
Price AdjustmentEUROS 1,375,000
Listing Broker

Neil Russell

European Sales Manager
Read Full Bio
Listing Broker

Philip Roach

Sales Representative
Read Full Bio

Overview

Nordhavn Europe are delighted to offer you the opportunity to own Nordhavn 52 ‘SONAS’. She comes to the market following a very busy couple of years in both brokerage and new boat sales. Consequently resulting in a shortage of available vessels. The N52 follows on from the ever popular Nordhavn 47, with the 52 ticking the last box which could not be ticked on the 47……the cockpit! She offers everything a couple may need for either coastal or more adventurous off shore cruising.

SONAS has had two owners in her relatively young life, spending much of her time cruising the Mediterranean. In particular, the coastal waters around Spain and the Balearic Islands, so she is more than ready to extend her cruising a little further afield.

SONAS, is the dream vessel for any technically minded individual or couple. She was highly specced from the outset, with the very best electronics package, Maretron Smart boat monitoring system and camera network giving all over boat coverage.

She is a category A vessel and fully European CE compliant. This is truly an opportunity not to be missed in making her yours! For further information please call Philip Roach at Nordhavn Europe.

*EUROPEAN VAT PAID*

Specifications

Exterior:

• CE Certified Class A rated
• Twin helm chairs on flybridge
• Bow and stern thrusters and remote-control windlass
• Full folding bimini
• Bensenzoni manual passerelle
• Williams Jet RIB 385
• Large cockpit area ideal for outdoor dining and entertaining
• Underwater lights in transom
• Kahlenberg horn
• C&J Canvas on all windows

Interior:

• Two double berths with additional pilothouse watch berth

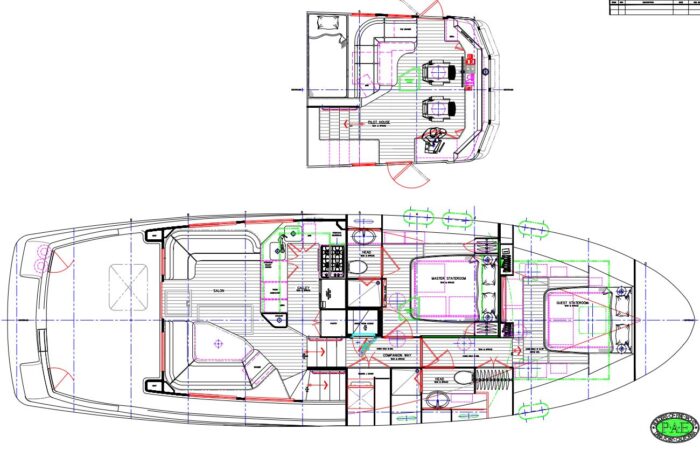

• Unique layout with corridor running through the boat
• Air conditioned
• LED lighting throughout
• Central Vacuum system
• Spacious pilothouse due to the removal of the traditional forward stairwell
• Twin pilothouse helm chairs
• Comprehensive electronics package including Maretron backbone for system monitoring throughout
• Engine room access portside of main corridor

Saloon:

• Standard layout with sofa seating to port and dining table to starboard
• Settee is black Ultraleather
• TV mounted in lift starboard of sofa
• Starburst pattern on saloon table
• Carpets fitted throughout
• Electric Ocean Air blinds
• Dimmer switches for overhead lights

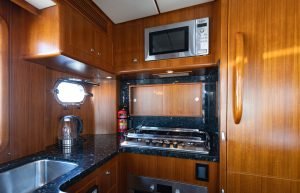

Galley:

• Black granite worktops
• Double sinks with high cut granite top to hide taps
• Subzero 700TCI with icemaker
• Bosch 5 burner gas hob
• Bosch built in microwave oven
• Bosch Slimline dishwasher
• Trash compactor

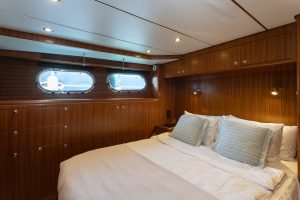

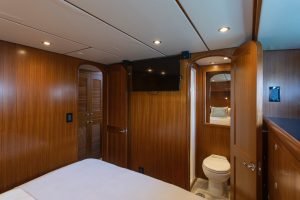

Master Cabin:

• Accessed via 4 steps leading down from the galley and located along the portside of the corridor.
• Bed located centrally with access to both sides.
• Hanging lockers
• Floors teak and spruce

Master Head:

• Granite Countertops
• Mirrors fitted to front of cabinet over sink
• Large shower cubicle
• Tecma head silence plus fresh water flush toilet
• Grohe faucets and shower controls
• Teak and Spruce

Guest Cabin:

• Double berth located forward
• Desk with drawers to starboard
• Ocean Air block out shades

Guest/Day head:

• Granite counter tops
• Mirror fitted to the front of cabinet over the sink
• Large shower cubicle
• Tecma head
• Grohe faucets and shower controls
• Teak and Spruce

Corridor:

• Engine room access located portside of galley steps
• Starboard side opposite there is a Bosch washer and drier hidden behind teak doors.

Pilothouse:

• Maximised volume Pilothouse due to removal of forward stairwell
• Full width dash
• Two Stidd 500N low back slimline helm chairs
• Fridge/freezer portside of galley to pilothouse stairs
• Pilothouse bunk in ultraleather
• Black ultraleather settee
• Dark majilite headlining reducing night-time glare
• Full Furuno TZT navigation system.
• Maretron backbone monitoring system
• Maxwell AA560 chain counter
• Full electronics spec available

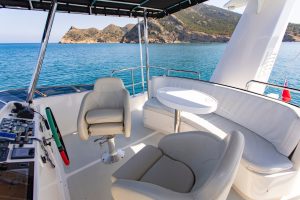

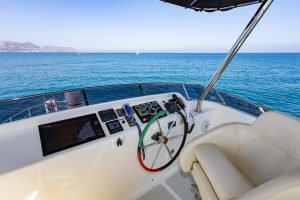

Flybridge:

• Two Todd helm chairs
• Fixed fibreglass seating with cushions
• Engine room controls, bow and stern thrusters and control windlass remote
• Fixed stainless steel framed Bimini top
• Protective covers for chairs, dash and seating.

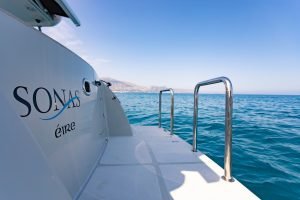

Swim platform:

• Swim step extension
• Besenzoni folding manual passerelle
• Swim ladder
• Pop up cleats countersunk into swim step for dingy tie up

Cockpit:

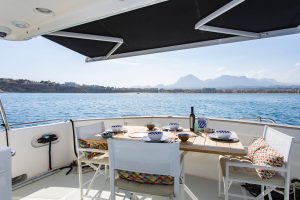

• BBQ console unit with sink and granite top. Folding GRP lid.
• Electric Miele BBQ
• Black Brustor retractable awning extending 7’ aft of boat deck with remote control, wall control and LED lighting

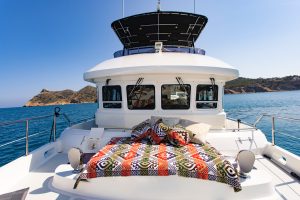

Portuguese bridge:
• Overhead handrails from Portuguese bridge to lower deck
• GRP door to Starboard for foredeck access

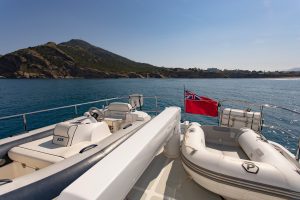

Aft deck:

• William Jet RIB 385
• Davit: Steelhead ES1500 Yacht crane, 3.66m extension
• Hella LED boat deck lights

Anchoring:

• 60kg Ultra anchor
• 122 meters – 9.5mm HT chain
• Chain stopper
• Chain counter on the flybridge and in the Pilothouse
• Spurs line cutter on main prop shaft
• Bow tow eye ring
• Flopper Stopper System – Installed on port side. Includes pole, rigging and custom plate

Safety equipment:

• 6 person Life raft
• EPIRB
• Jonbuoy MOB

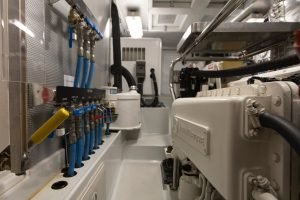

Machinery and Engine Room

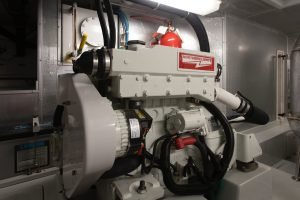

• Main engine upgrade to John Deere 6068AFM75 266 hp @ 2400 rpm Dry exhaust with keel cooler (hours)
• 5 Blade prop in lieu of standard 4 blade
• The wing engine is a Lugger L844D 40 hp with its own separate 10 gallon day tank – 24v start and Gori folding propeller ( hours)
• 12 KW Northern Lights Generator with sound enclosure. 240v/24v – 50Hz ( hours)
• Air Conditioning – (230v – 50Hz) Marine Air – reverse cycle with digital control panels in each cabin and living area. Total of 60,000 BTU
• Bow thrusters: Side Power 13.5 hp 24 volt with jog levers at control stations
• Stern thrusters: Side Power 13.5 hp 24 volt with jog levers at control stations
• Side Power handheld remote thruster control unit
• ABT (TRAC) 220 stabilizing system. Keep cooled
• Reverso oil change system
• Mathers electronic controls at both stations
• Stainless steel tray over the main engine
• Fire suppression system in engine room and lazarette


Plumbing
• Fresh water wash down bow, stern, boat deck and engine room
• Water maker Village Marine Squirt 600 230v – 50 Hz with auto back flush (600 USG/D)
• Cockpit shower
• Ice maker
• 400 USG (333 UKG) Freshwater tank
• Water heater, Torrid 20 gallon
• Wema Level Gauge for Freshwater Tank
• Back up fresh water pump plumbed in line with selector.
• Fuel system – 2 main supply tanks totalling 1400 gals US 91165 UKG) and 1 aluminium day tank of 70 USG (58 UKG)
• Main tanks have access ports to accommodate an average size man for cleaning and inspection. All three tanks have sight gauges with valves. Sight gauge on day tank can be used to quickly measure cumulative fuel burn rate. Water collection sump on day tank is equipped with a water sensor with alarm in the pilothouse
• Fuel system is gravity feed to the day tank and supplied from the two engine room tanks through a Racor Duplex 900 filter.
• Fuel transfer system allows transfer of fuel to any of the fuel tanks for trimming or cleaning and filters all transferred fuel through a Racor 900 filter
• Grohe faucets in galley, heads and showers
• Electric bilge pump with Ultra Float Switch
• Rule 3700 High Water Bilge Pump with Ultra Float Switch and alarm in pilothouse
• Mechanical bilge pump running of the wing engine (fitted 2014)
• Grey water system – galley and head sinks, shower sumps and washing machine drain to 110-gal.
• Tank with Sealand electric discharge pump and Whale hand pump
• Black water tank of 120 USG (99 UKG) fitted with Sealand electric and Whale manual discharge pumps, plus Tank Watch 4 monitoring system


Electronics
• Ritchie compass
• Furuno TZTBB Processor box
• ELO 22″ Multi-touch screen monitors 2244L
• Furuno TZT14 14.1″ colour LED backlight multi touch display
• Furuno DRS12A 12kw 6ft open digital array
• Furuno DRS4D 24″ digital Radome
• Furuno DFF1 network Echosounder
• Furuno TDCR525 ST-MSD
• Furuno Ultra sonic wind sensor
• Furuno RD33 colour displays (2 wheelhouse, 1 flybridge)
• Furuno Hub101
• Furuno GP33 Standalone GPS
• Airmar B122 smart depth transducer NMEA2000
• Airmar ST850 bronze thru hull speed transducer NMEA2000
• Furuno Navpilot 711 system c/w control head, processor unit and rudder reference
• Furuno FAP711C control head (flybridge) New type.
• Autopilot hydraulic drive unit
• Icom IC-M506 fixed DSC VHF with HM195 command mic and
• DNH 30W loudhailer speaker
• Furuno PG700 Fluxgate
• Furuno SC30 Satellite compass transceiver
• Vasari Marine PC MPC477i with remote panel
• Wireless keyboard with integral trackball
• Seagate 3TB hard drive
• Maxsea Explorer navigator
• Raymarine Flir T453 30Hz 640×480 thermal camera with joystick control kit
• Axis IP engine room cameras
• Axis IP HD dome cameras
• 16 port POE switch and video splitters connectors
• Vasari iSea DVR camera system and iSea 8 camera DVR software
• Video to IP Server
• Yacht Controller dual band system, for control of engine, bow & stern thrusters & anchor windlass
• Maretron Vessel monitoring system. Inc. BB, Sensors, software and alarms
• Tv’s: 1x Panasonic 39″ Viera saloon, 1 x Samsung 40″ UE40F8000 – fwd cabin, 1 x Samsung 32″ UE32F5500- mid cabin
• Samsung Blu-Ray player
• Intellian i6PE 60cm Sat TV ant system
• Fleet Broadband 250 in i6 dummy dome
• Smart Titanium MS5/12 multiswitch quad for Sat TV/TV distribution
• Technomate TM5402 HD c/w 1 Tb USB hard drive
• Sky plus HD receiver with 2Tb hard drive audio system with internet radio and streaming facilities
• Pairs of Bose Acoustimass 3 speakers with brackets
• Fusion AV700G 700 series DVD/CD/AM/FM/iPod/MP3 (Wheelhouse)
• Pair of Fusion 6″ Marine speakers

Electrical
• Stern shore power connections in Tri arrangement on foredeck. Standard 32 amp shore power, dedicated air conditioning shore power and TV/phone inlet
• 12v outlet in pilothouse and flybridge
• Lightening ground system with copper plate on full. Forespar Wand on top of stock to ground plate on hull
• Guest spotlight with remote control.
• LED lighting through out
• Underwater lighting in transom
• Dimmer switches
• Inverters upgraded to 5KW 230 VAC @ 50 Hz

Disclaimer
The company offers the detail for this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
